 TIMING COVER IGNITION SYSTEM

 NEW

1928 -1934 FRONT IGNITION DRIVE ASSEMBLY

  $489.00

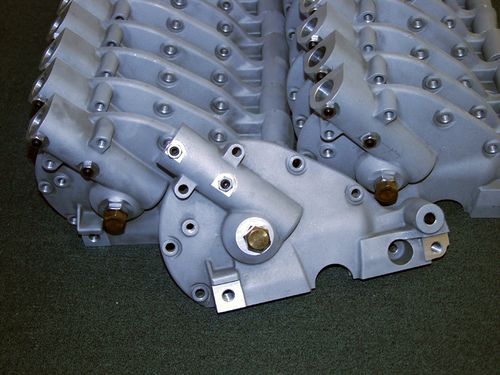

8 -1- 2011 We sold the last one today. More are underway. Get your name on the list.

Attention buyers.

We want to take this opportunity to publicly say thank you for making this project possible.

Your trust and willingness to advance the hobby has made it possible to create a new and useful fine quality speed part for the Four banger community.

Your entry at a substantially reduced price is now rewarded, with not only a top quality Front Cover Timing System, but should you decide to sell it, or one of the several some of you purchased, you should reap a profit.

We sincerely hope you will run the Cover soon and enjoy it as much as we enjoyed making it for you.

Charlie Yapp

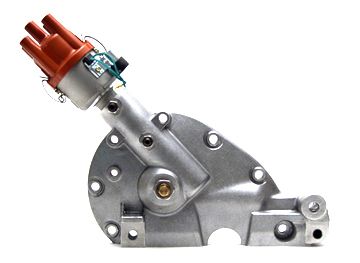

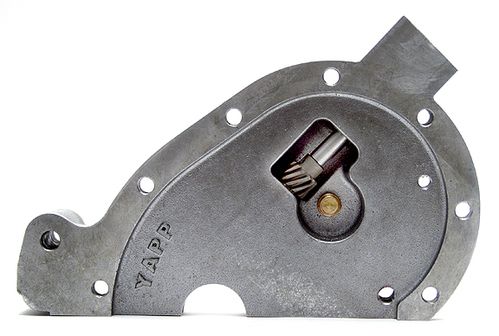

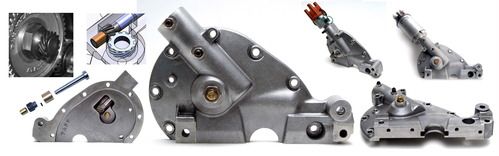

Above is the front cover ignition system. The unit a complete kit that drives off the front cam timing gear with a new specially design cam-nut and drive gear. The housing has a distributor drive shaft and pinion gear installed.

It uses any distributor that would fit a VW BEETLE (Clockwise rotation). The Distributor is optional and extra (not included)





WANT a PDF copy of the

INSTRUCTIONS?

EMAIL US & REQUEST A COPY & WE'LL EMAIL IT RIGHT BACK TO YOU.

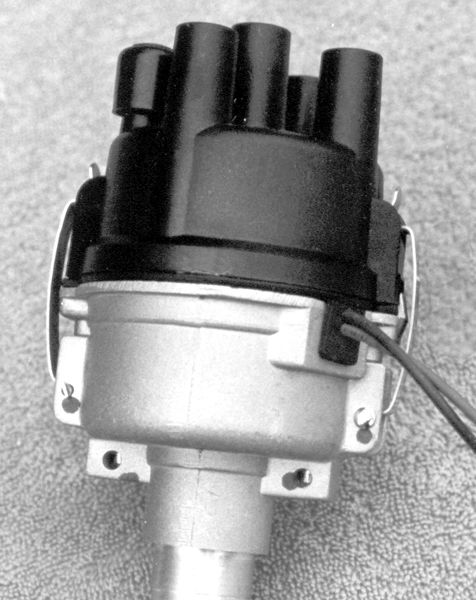

Daily Driver Distributor, shown below, is available from us: CW rotation, points, centrifugal advance, 6 or 12 volt, rust color cap and ready to run. It sells here for $76.50 (no coil). This unit works very well for touring and daily driving. It comes with a second set of points and a pair of and a second pair of advance springs to better reach the proper advance curve for bangers. If maximum performance is required then I suggest the FSI VW unit.

For those of you wanting something a bit more, I suggest that you contact FSI Ignitions. They have an Electronic VW version that is best suited for those of you needing more advance, performance curve and spring control. fsignitions@cableone.net or call Mel at 580-762-8322

 Distributor (points type) - Optional at $76.50 Complete + ship. Wires not included.

Buyers need to obtain one of these inexpensive VW distributors. The options are huge (a good thing). You'll find points and electronic, advance curve kits, vacuum and centrifugal advance, high speed balanced rotors, hi energy spark systems, Magnetos and conversion kits and caps of all kinds. Brands include FSI, Mallory, Bosch, MSD, Empi, PRO, Pertronix and several other major aftermarket brands. There is a profusion of websites to Google and Ebay listings that discuss these distributors and their advantages and possible upgrades.

VW distributors generally run from $80 for new centrifugal advance points units and $100 to $200 for electronic and up to $400 for ball bearing jobs. We have internal replacement advance springs that get you to about 32 degrees advance.

NOTE: Any clockwise four banger distributor that has its shank, shaft and tang machined to VW specs (below) will fit. Next image is a print to work from. . . Most aftermarket manufactures carry a ready-made VW distributor. Units with a larger housing will have more adjustability (weights can move farther out) than the "009" models.

Measurements are in millimeters.

Questions? let me know . . .

HERE IS THE DEAL

If you want one total is $489 + ship.

(SOSS members may take 10% off this price)

Questions? Contact me by email or phone (513) 724-0700.  . . . C.Y.






   ORDERING

We accept  Visa  and  MasterCard and Discover by phone or Fax.

Print An Order Form

Mail & make checks out to:

Scladed Dog Speed Parts, 3860 Cain Run Rd, Batavia, Ohio 45103

VOICE (513) 724-0700 or  FAX (513) 724-0116




 Closed Weekends
