Exhaust Headers

Updated 9/19/2022

IMPORTANT NOTES;
Split Y-Headers are in production
STEEL & IRON PRICES HAVE JUMPED BIG TIME.

Header Gasket
$12.00        IN STOCK
Metal clad one piece.
Cut in sections for intake manifold seal.
Metal front (silver) and back side (grey).

Header Plates

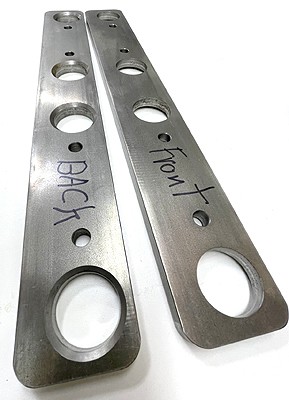

HEADER PLATE
6 HOLE WELDABLE 1/2" THICK STEEL
Steel $82.00              IN STOCK
Stainless Steel $150, 6 or 4 holes(special order-Please Call)

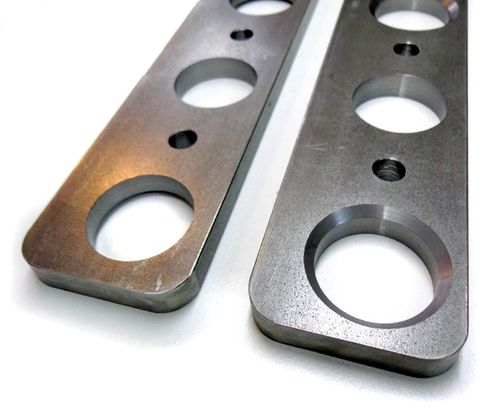

Our 1/2" thick flat plates are special.
The back side has a chamfer machined into the exhaust port holes.
Your welder inserts the 1-1/2" dia. steel tube into the hole, flush
with the backside and welds into the chamfer.
The finished job is easier and welding is hidden for a nice clean install.
The corners are nicely rounded.
HEADER PLATE - 4 HOLE
OHV Conversion "F" Head Version
 4 Hole at Exhaust Ports
Rounded Corners & Chamfered Back side.

$85 (special order -  PLEASE CALL)

 To fit engine built with "F" head type OHV conversions like Riley, Roof and many more era conversions, where the exhaust ports are in the block and
the unused intake ports need to be covered.
CHOOSE Rounded OR Square Corners
Special order - Please allow 2-3 weeks to make.

Split -Y Headers

Updated 9/19/2022
Casting order placed (20 sets). Should (+-) have raw castings November 1st,
then off to machine shop. Should be done by December 15th-ish

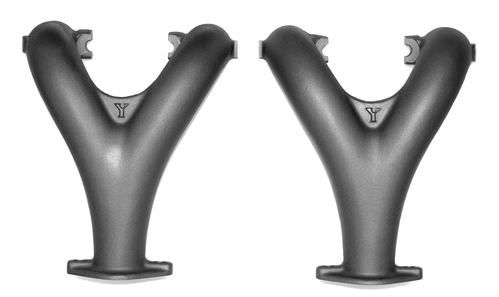

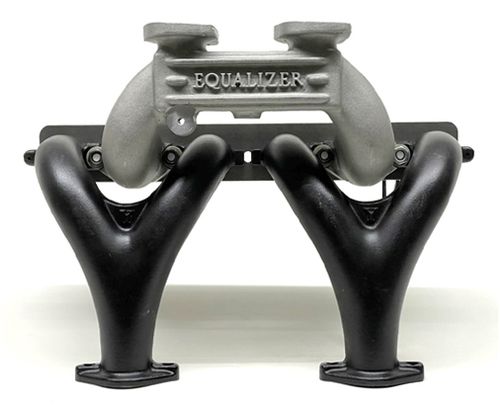

SPLIT Y-HEADER KIT
$595.00
Deposit $300.00 (checks only) CC, MO, personal.
1st come-1st served.
Make check out and mail to:
Include all your contact info:
Scalded Dog Speed Parts
3860 Cain Run Road
Batavia Ohio 45103

We will return a deposited invoice for your records by mail.
CAST IRON
Fits all Model B and A engines.
INCLUDES:
Two Iron "Y" castings, 4 gland rings, 2 weldable header flange plates,
hardware, lower gaskets and full instructions.

Deep mellow tone.
Not loud and treble like tube headers.
These can be fed into one pipe or two pipes.

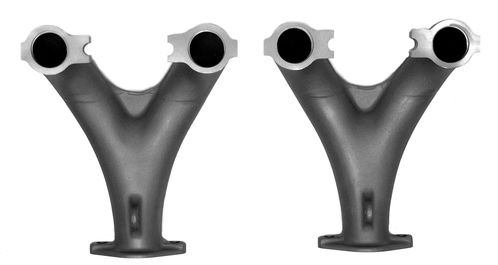

Castings are fine grained quality and take coatings nicely.
Video:  Walk around -  click HERE.
Video:  Hear the muffler system at work - click HERE.

Providence:
In the early 1960's a gentleman in Washington State was playing around with a couple Model A intake manifolds trying to see if he could make an exhaust header. He ended up making a pair of castings that worked and looked neat.
C. Yapp bought his patterns but found that they needed modernizing.
New modern casting tooling was developed.

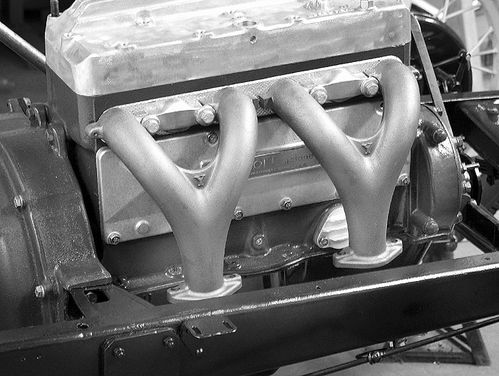

 They look "steampunk".
Sound is deep, mellow and leaves no doubt
that you have the power.

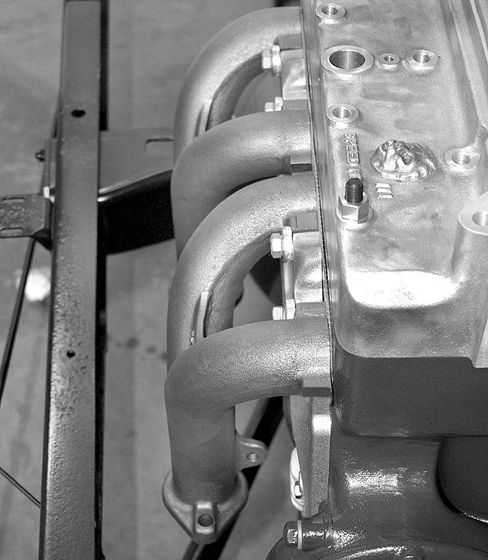

 The cast iron Split-Y headers give a smooth deeper rumble.
Believe me, nothing in the hobby sounds or looks so good.
They're good for 5 HP increase to boot.
All hardware is included.

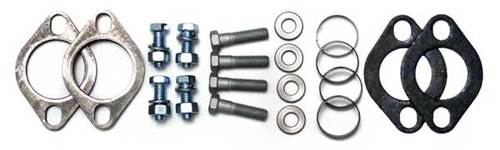

Shown here are the flanges, gaskets and nut/bolt/washers.
These 2 steel flanges are used to weld your collector pipes to.
Shown are set of 4 gland rings for port alignment, header to block bolts and special over sized washers. Instructions included.
Fits Model B and A engines.
Filter side plates and B fuel pumps can not be used.

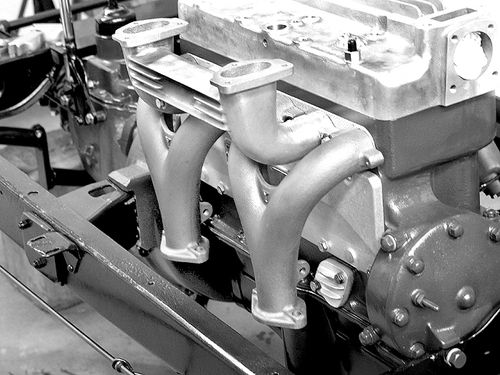

Most dual downdraft intake manifolds fit.
Most single downdraft do not fit.
Updraft manifolds do not fit.
EXTRA HARDWARE SET
Hardware Kit - As Shown
$25.00     IN STOCK
Y-HEADER HARDWEAR
Scalded Dog Speed Parts,
3860 Cain Run Rd,
Batavia, OH 45103.
Phone (513) 724-0700    Email:  [email protected]
Questions? Please use the form below for questions or to ask for an invoice to use your card with.
