Updated 1/26/2023
Ignitions
Castings are in hand at the machine shop
Timing Cover Ignition System
Price $685 + shipping
Deposit check $300.00
make out & mail to:
Yapp Studios Inc
3860 Cain Run Rd
Batavia Ohio 45103
QUESTIONS?
Email Charlie
[email protected]
513-724-9000

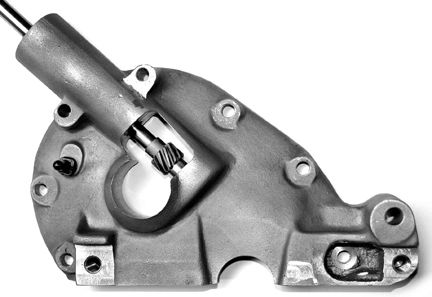

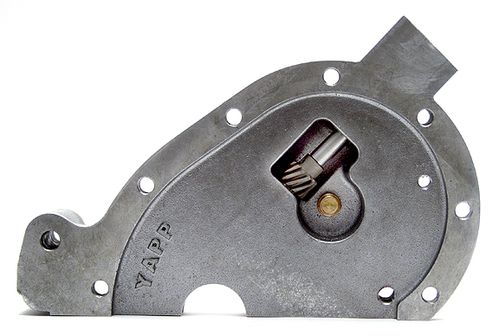

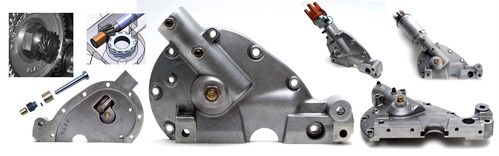

Replaces timing cover on Ford Model A & B engines. Complete kit includes timing gear gear-nut, pinion gear-shaft, cover gasket, thrust control and hardware.

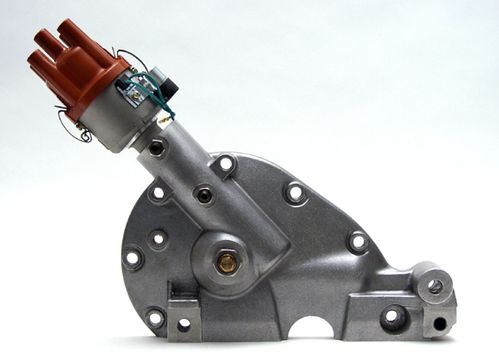

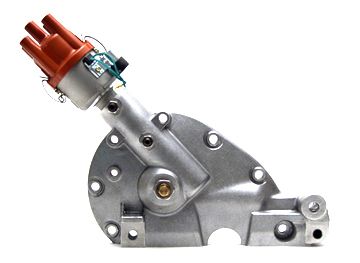

Uses any distributor or Magneto made to fit classic VW Beetles.
Shaft runs clock-wise.
Distributor must be calibrated to Banger RPM range.
Used for race cars to lower ignition.
Can be used as a second ignition source for aircraft and for dual spark cylinder heads. . . . or just to be different. . . .
Have more fun than the other guys!!

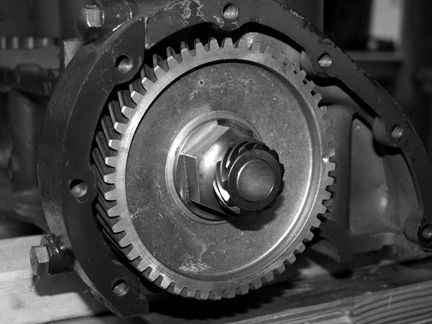

Special made and hardened cam nut is fitted with 1953 Ford ignition drive gear, it drives a Ford pinion gear and custom shaft.
Camshaft thrust is adjustable by screwing in/out an oversized manganese bronze screw and lock nut.
The timing pin position is set for TDC.
The cover was created and based on 1929 Ford prints.
Made of fine grained 356-T6 aluminum for a super fine surface quality.
Deposit check $300.00
make out & mail to:
Yapp Studios Inc
3860 Cain Run Rd
Batavia Ohio 45103
QUESTIONS?
Email Charlie
[email protected]
513-724-9000
Replaces timing cover on Ford Model A & B engines. Complete kit includes timing gear gear-nut, pinion gear-shaft, cover gasket, thrust control and hardware.
Uses any distributor or Magneto made to fit classic VW Beetles.
Shaft runs clock-wise.
Distributor must be calibrated to Banger RPM range.
Used for race cars to lower ignition.
Can be used as a second ignition source for aircraft and for dual spark cylinder heads. . . . or just to be different. . . .
Have more fun than the other guys!!
Special made and hardened cam nut is fitted with 1953 Ford ignition drive gear, it drives a Ford pinion gear and custom shaft.
Camshaft thrust is adjustable by screwing in/out an oversized manganese bronze screw and lock nut.
The timing pin position is set for TDC.
The cover was created and based on 1929 Ford prints.
Made of fine grained 356-T6 aluminum for a super fine surface quality.
Front Cover Distributor (CW)
SPECIAL FOR
FRONT COVER KIT
DISTRIBUTOR
Performance
FOR OUR FRONT COVER KIT

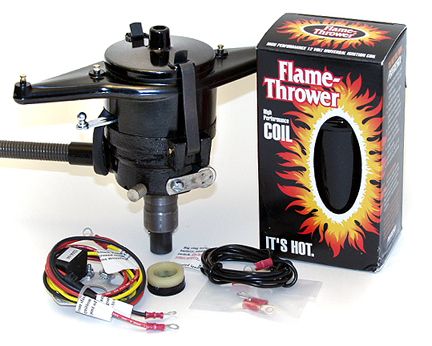

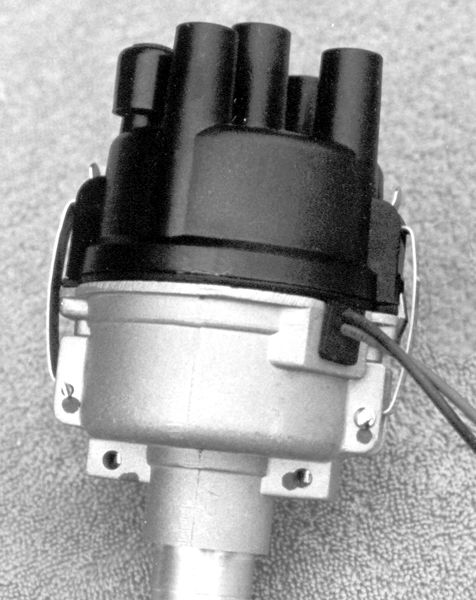

This Electronic Distributor is for our
YAPP Front Cover Ignition System
It is a Clock Wise (CW) rotation.
Specially machined to fit our
Front Cover Ignition System (FCIS).
Can be professionally tuned for most street or racing conditions.
Works with all engine modifications.
Electronic, centrifugal advance, comes with coil.
TO PURCHASE THIS DISTRIBUTOR
CONTACT "FSI" DIRECTLY AT:
580-762-8322
Any VW Beetle Distributor or Magneto will fit and work.
The internal springs must be changed out
to reduce the full advance to 2000 RPM.
The FSI units are electronic, spun, adjusted and ready to rock.
Performance
FOR OUR FRONT COVER KIT
This Electronic Distributor is for our
YAPP Front Cover Ignition System
It is a Clock Wise (CW) rotation.
Specially machined to fit our
Front Cover Ignition System (FCIS).
Can be professionally tuned for most street or racing conditions.
Works with all engine modifications.
Electronic, centrifugal advance, comes with coil.
TO PURCHASE THIS DISTRIBUTOR
CONTACT "FSI" DIRECTLY AT:
580-762-8322
Any VW Beetle Distributor or Magneto will fit and work.
The internal springs must be changed out
to reduce the full advance to 2000 RPM.
The FSI units are electronic, spun, adjusted and ready to rock.
